Do You Need Safety Goggles for 266nm Lasers?

Ultraviolet (UV) lasers, especially those with a wavelength of 266nm, are indispensable tools in scientific research, semiconductor manufacturing, and medical applications. However, their high energy and short wavelength also make them potentially harmful to the human eye. So, do I need goggles for 266nm lasers? The short answer is yes.

Why are 266nm lasers dangerous?

266nm lasers belong to the ultraviolet C (UVC) band. UVC radiation is invisible to the naked eye, but is extremely harmful due to its high photon energy. Direct or indirect exposure can cause:

① Corneal damage (photokeratitis)

② Damage to the lens and retina

③ Skin burns (long-term exposure)

Even brief exposure to a focused beam or strong reflections of a 266nm laser can cause permanent eye damage.

Why are laser goggles essential for 266nm laser protection?

According to international laser safety standards set by the International Electrotechnical Commission (IEC) and the American National Standards Institute (ANSI), appropriate goggles must be worn when using 266nm lasers. Laser safety goggles are specifically designed to block or absorb harmful 266nm wavelengths, reducing the intensity of lasers reaching the eye to safe levels.

These goggles are made with special optical filters that have high optical density (OD) values in the 266nm range. The OD value indicates the degree of attenuation of the laser; for example, an OD value of 6 means that the goggles can reduce the intensity of the laser by a million times.

Choosing the right 266nm laser safety goggles

When choosing goggles, please pay attention to the following points:

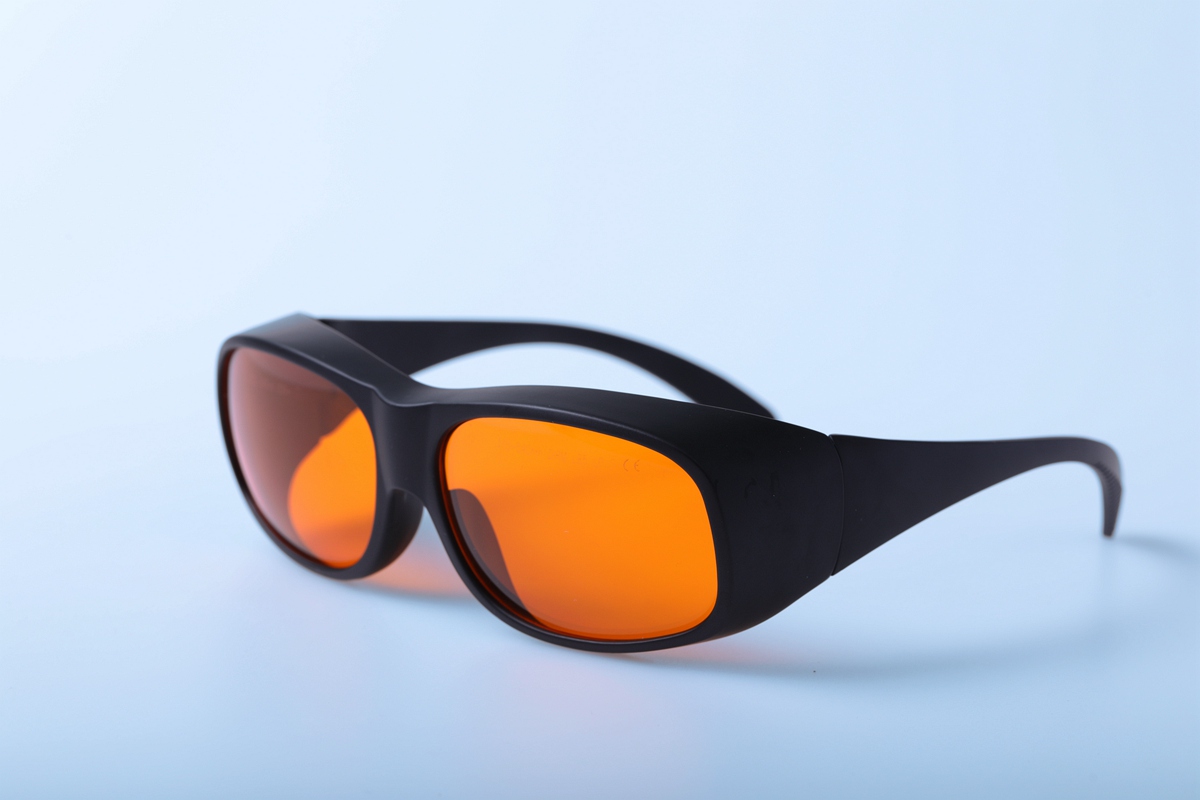

① Specific wavelength protection: Different lasers have different operating wavelengths. When choosing laser goggles, make sure that the rated protection wavelength of the goggles is 266nm. Our LP-GHP and LP-GHP-2 laser safety goggles from LaserPair can protect against 266nm laser wavelengths.

② Optical density (OD): Choose the appropriate OD value according to the power of the laser. The higher the power, the higher the OD value of laser goggles.

③ Visible light transmittance (VLT): Reasonable visibility (VLT) ensures good visibility during laser operation, thereby reducing the risk of accidents caused by impaired vision.

④ Certification: Ensure compliance with safety standards such as ANSI Z136.1 or EN 207.

⑤ Comfortable fit: Especially important for long-term laboratory work.

Other safety tips

Never rely on ordinary sunglasses for laser protection.

In areas where UV lasers are used, please post warning signs.

Use beam shields and protective shields whenever possible.

Train all users on proper laser safety operating procedures.

Conclusion

Yes, it is absolutely necessary to wear safety goggles when using 266nm lasers. The risk of damage to the eyes caused by UV radiation is very serious and irreversible. Given the potential hazard to the eyes from 266nm laser radiation and the clear requirements of international safety standards, wearing the right laser safety goggles is not only an option, but a necessity. Choose the right, certified laser safety goggles to ensure that they can adequately protect against this specific wavelength of laser light. In a laser lab, safety is essential, not optional.
